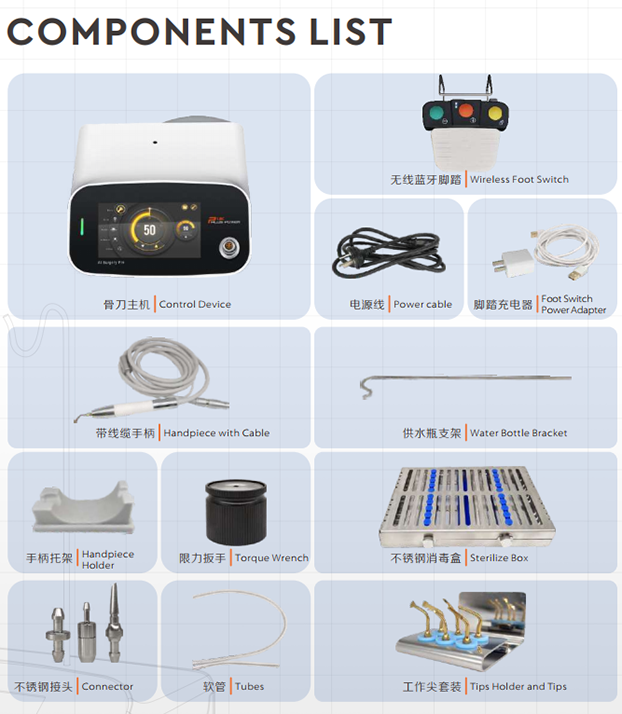

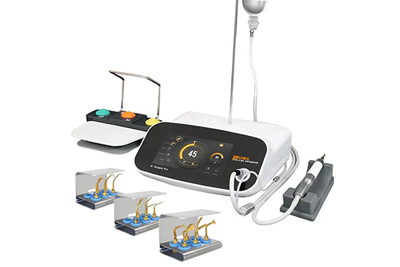

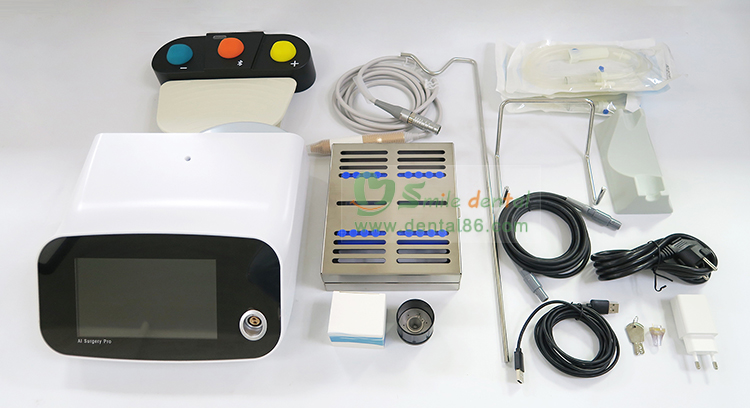

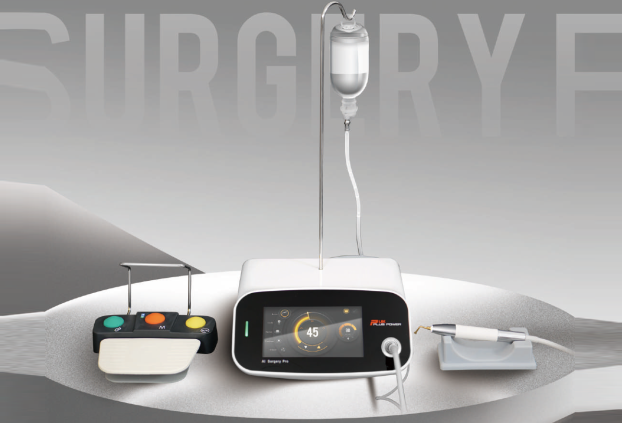

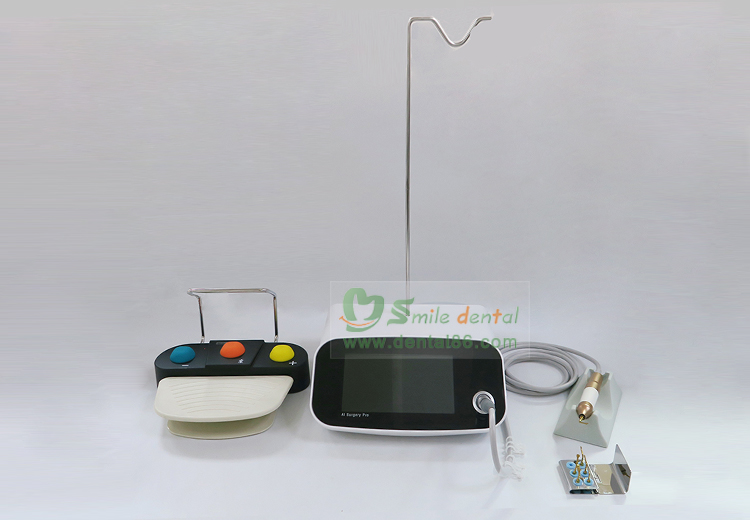

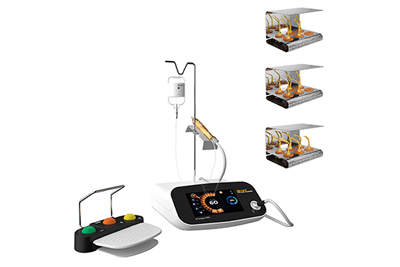

PBS01 Piezo Bone Surgery

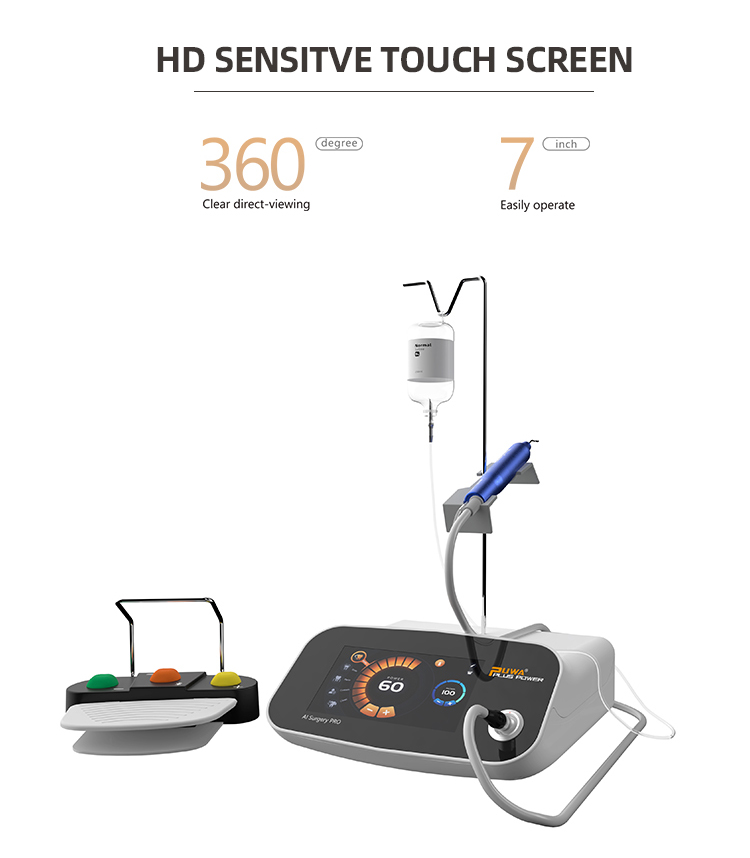

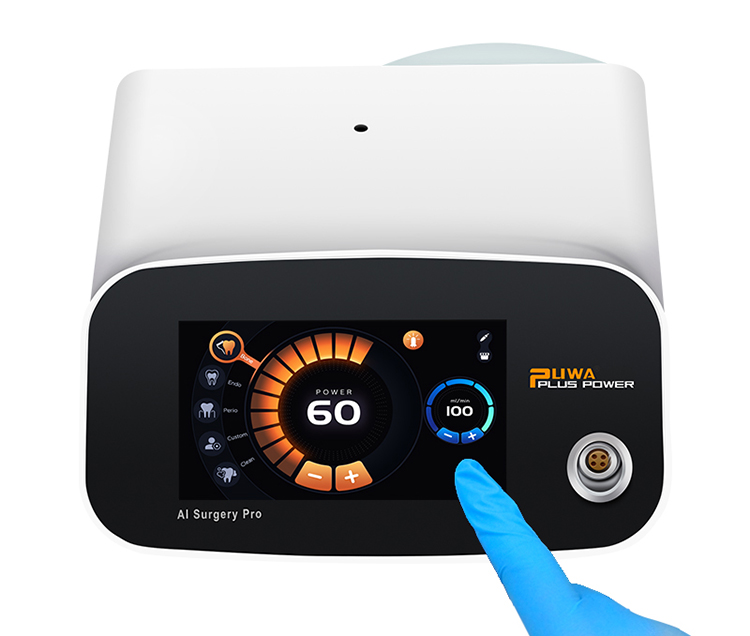

HD Sensitive Touch Screen
7-inch screen for easy operation, 360° clear direct-viewing.

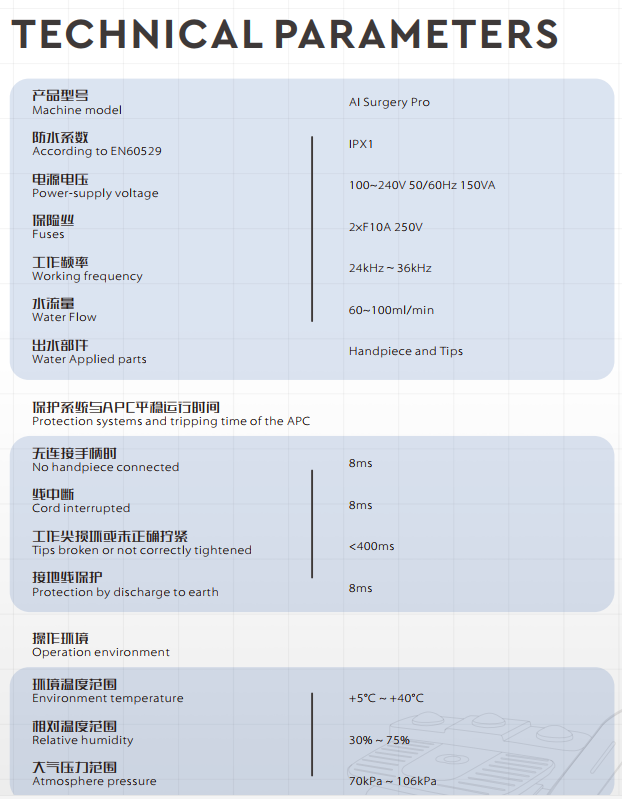

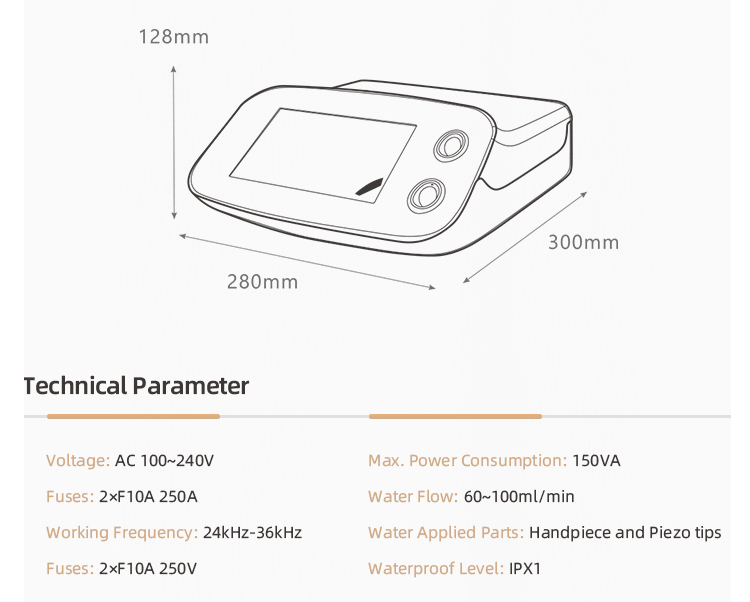

Technical Parameter
Voltage: AC 100~240V
Max. Power Consumption: 150VA
Fuses: 2×F10A 250V
Working Frequency: 24kHz-36kHz
Water Flow: 60~100ml/min
Water Applied Parts: Handpiece and Piezo tips
Waterproof Level: IPX1
Size: 300mm × 280mm ×128mm

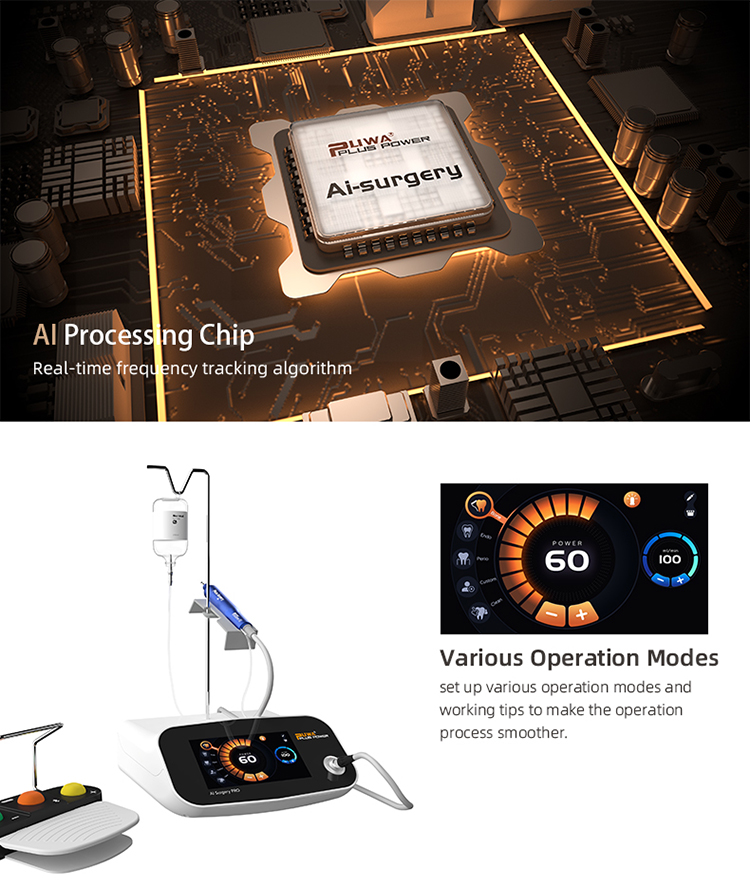

AI Processing Chip
Real-time frequency tracking algorithm.
Various Operation Modes
Set up various operation modes and working tips to make the operation process smoother.

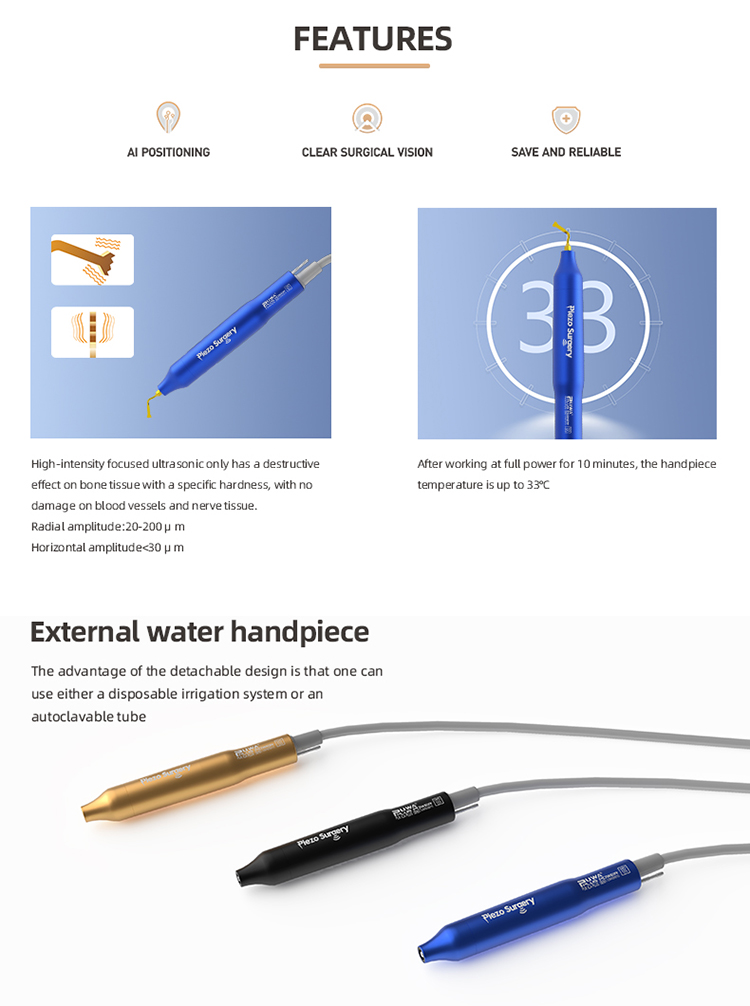

FEATURES
AI Positioning | Clear Surgical Vision | Safe and Reliable
High-intensity focused ultrasonic only has a destructive effect on bone tissue with a specific hardness, with no damage on blood vessels and nerve tissue.
Radial amplitude:20-200μm
Horizontal amplitude:≤30μm
After working at full power for 10 minutes, the handpiece temperature is up to 33℃.

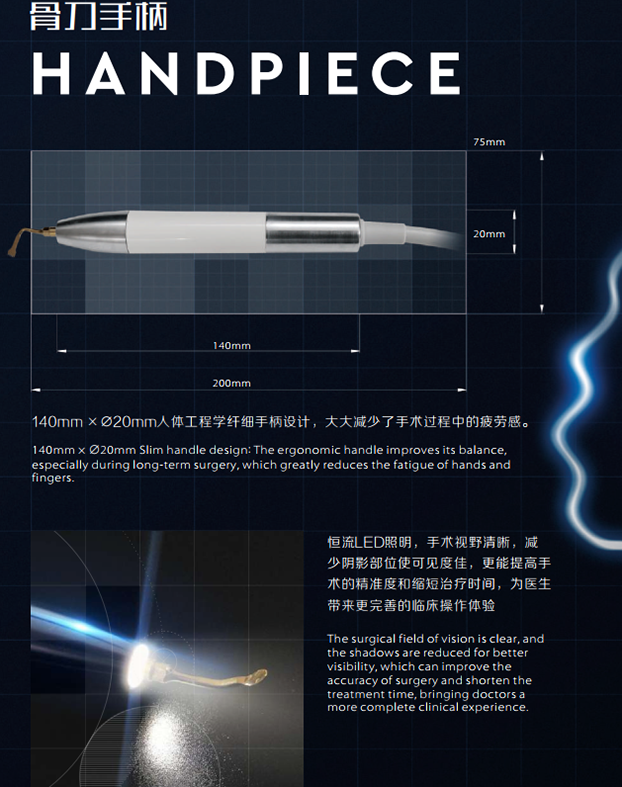

External water handpiece
The advantage of the detachable design is that one can use either a disposable irrigation system or an autoclavable tube.

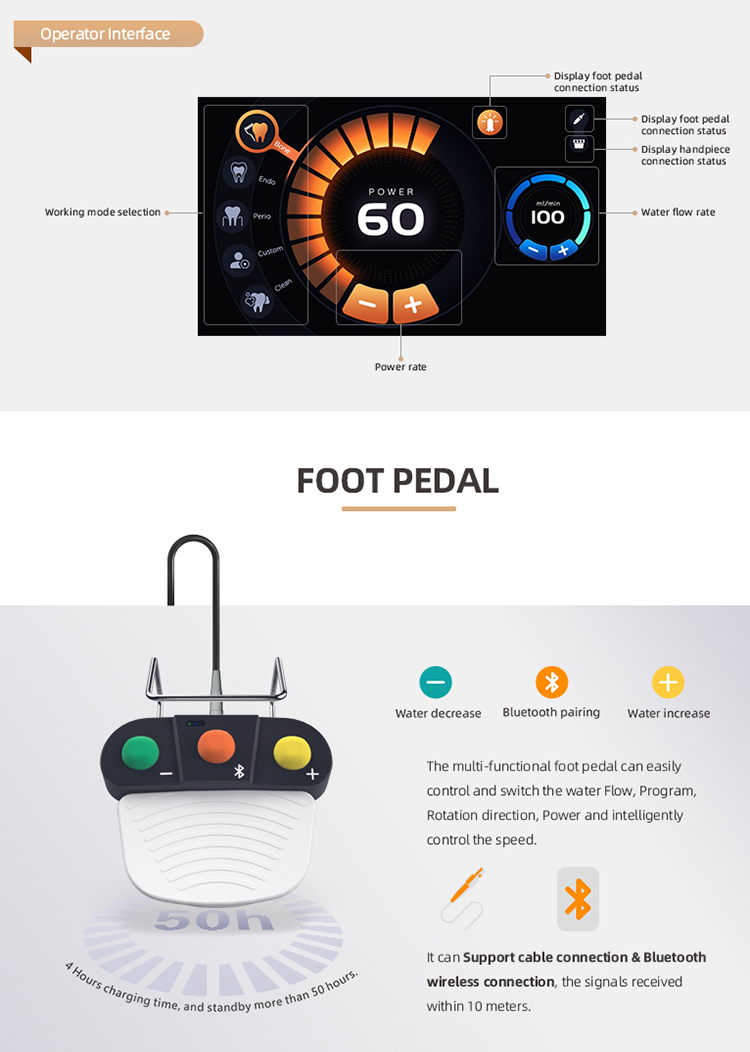

Operator Interface
Display working mode selection, power rate, water flow rate and foot pedal connection status.
FOOT PEDAL
The multi-functional foot pedal can easily control and switch the water flow, program, rotation direction, power intelligently control the speed.
It can support cable connection & Bluetooth wireless connection, the signals received within 10 meters.
4 hours charging time, standby more than 50 hours.

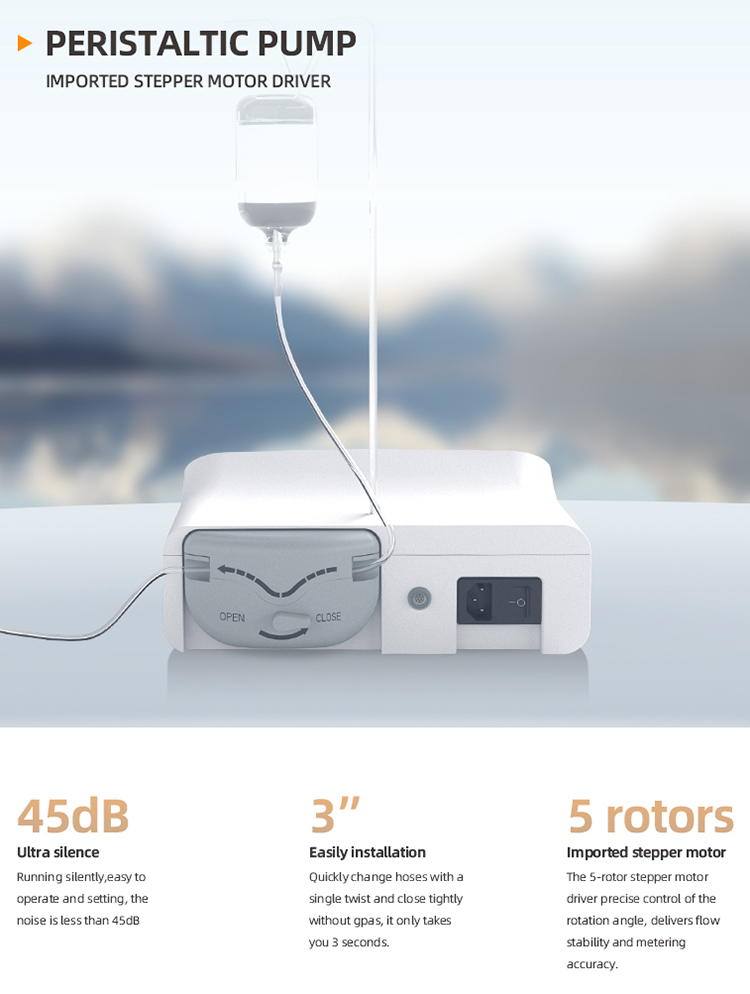

PERISTALTIC PUMP
Imported stepper motor driver
Ultra silence
Running silently,easy to operate and setting, the noise is less than 45dB
Easily installation
Quickly change hoses with a single twist and close tightly without gpas,it only takes you 3 seconds.
Imported stepper motor
The 5-rotor stepper motor driver precise control of the rotation angle, delivers flow stability and metering accuracy.

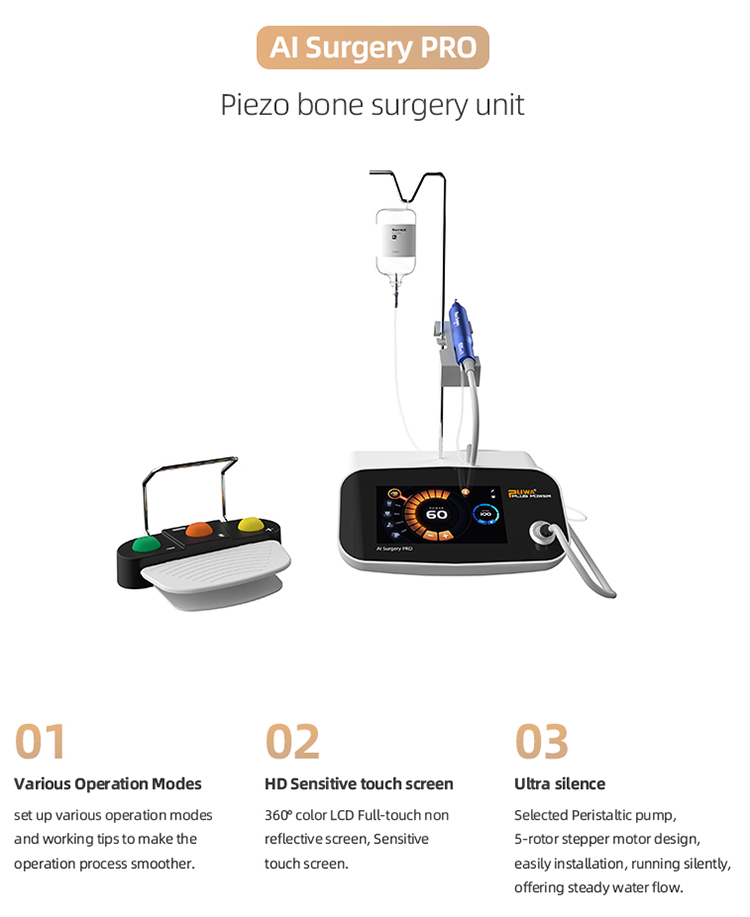

AI Surgery PRO
Piezo bone surgery unit
01.Various Operation Modes
set up various operation modes and working tips to make the operation process smoother.
02.HD Sensitive touch screen
360 color LCD Full-touch non reflective screen, Sensitive touch screen.
03.Ultra silence
Selected Peristaltic pump,5-rotor stepper motor design,easily installation,running silently,offering steady water flow.

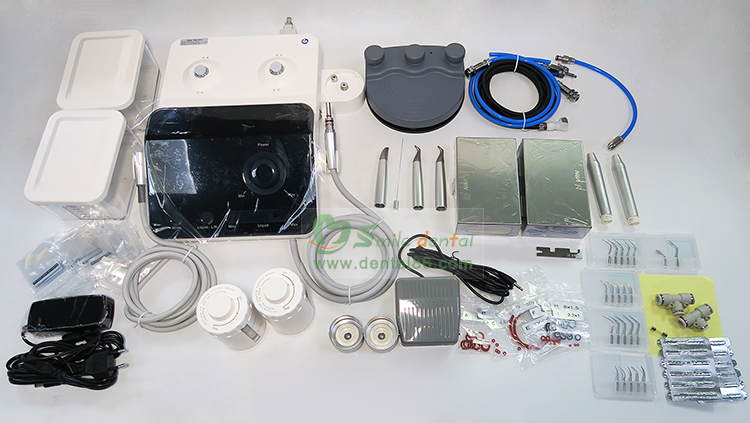

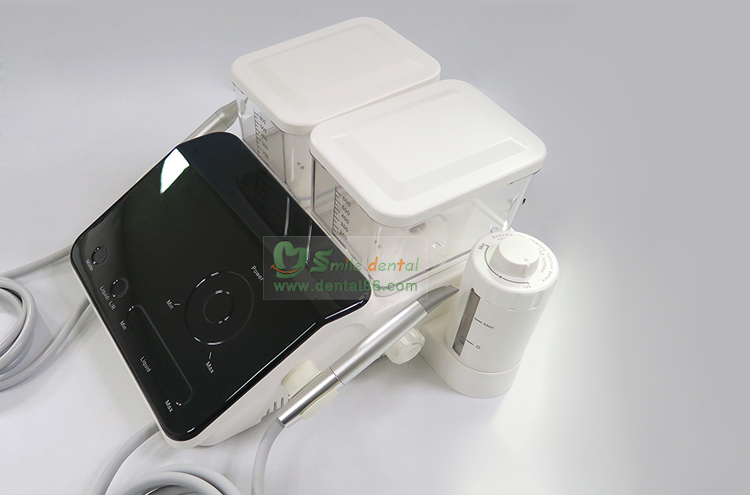

VRN AIR-MASTER
6 in 1
22 tips

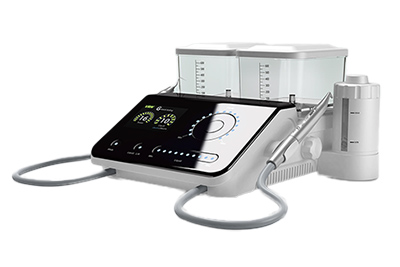

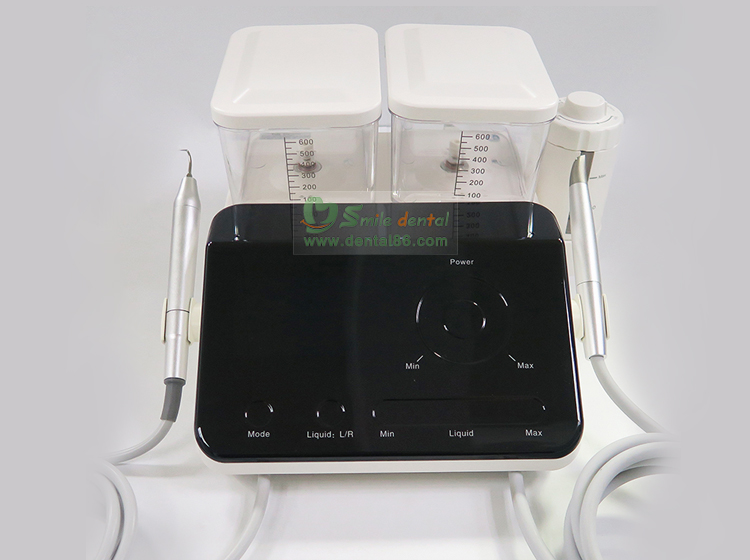

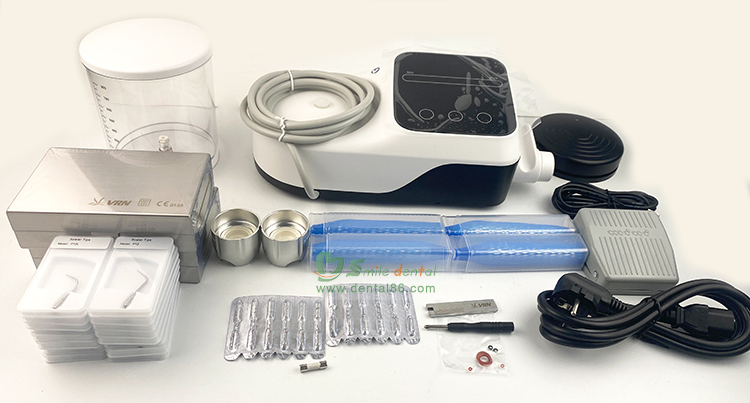

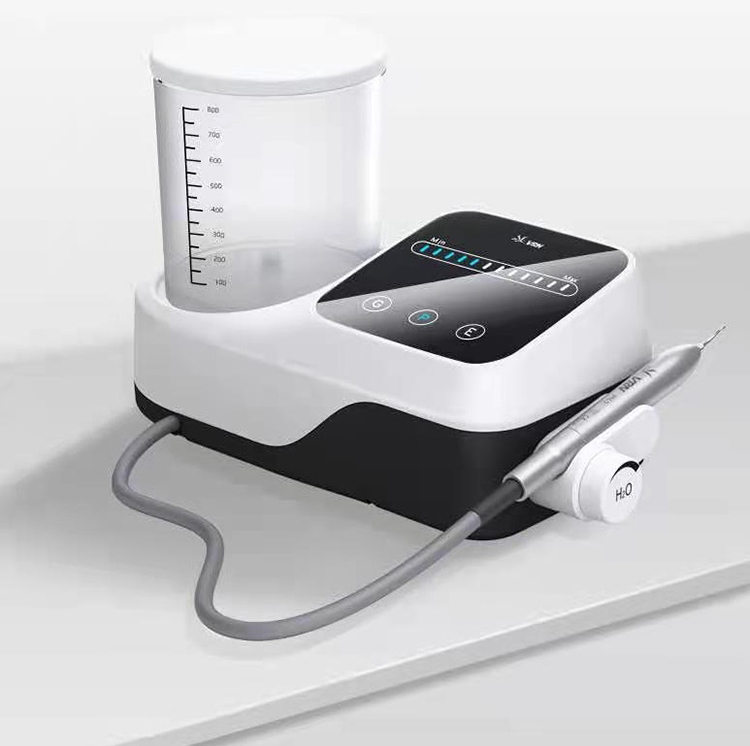

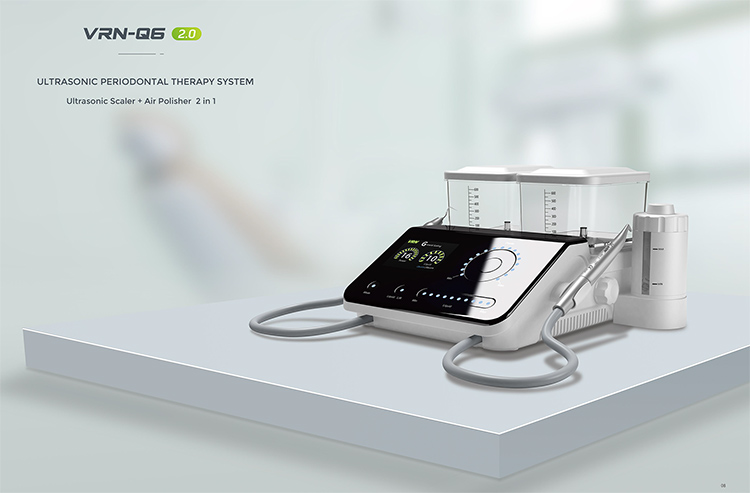

US48 Ultrasonic Periodontal Therapy System

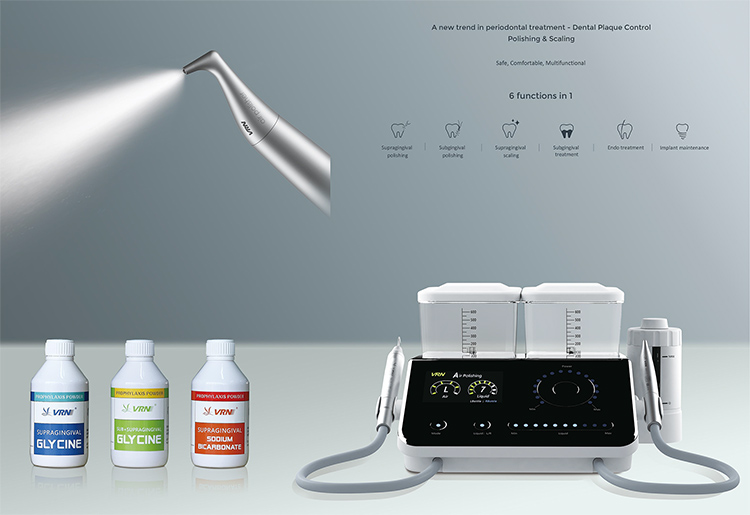

6 in 1 Dental Ultrasonic Air Polisher Scaler
Features:

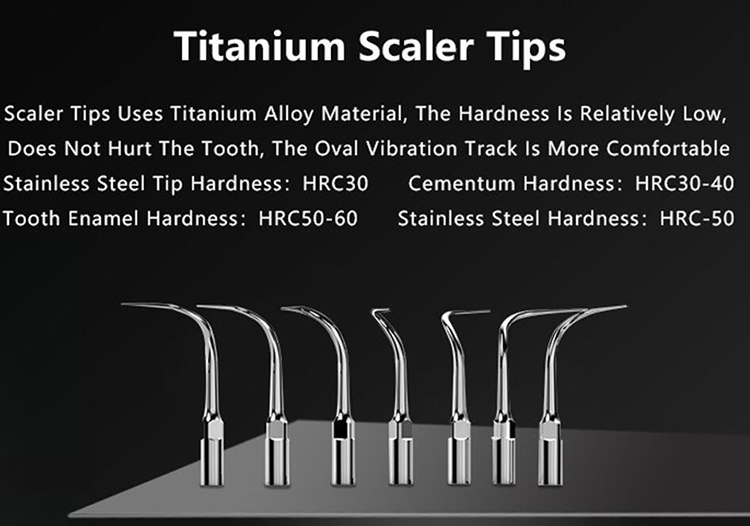

1.The scaler tip is casted from Titanium alioy to ensure circular vibration track and more concentrated amplitude, so that Perio, Scaling. Endo, Restorative treatments can be done simultaneously
2.Smart electronics allows an extremely wide power range with 16 grades from low energy delivery in endodontics to powerful scaling

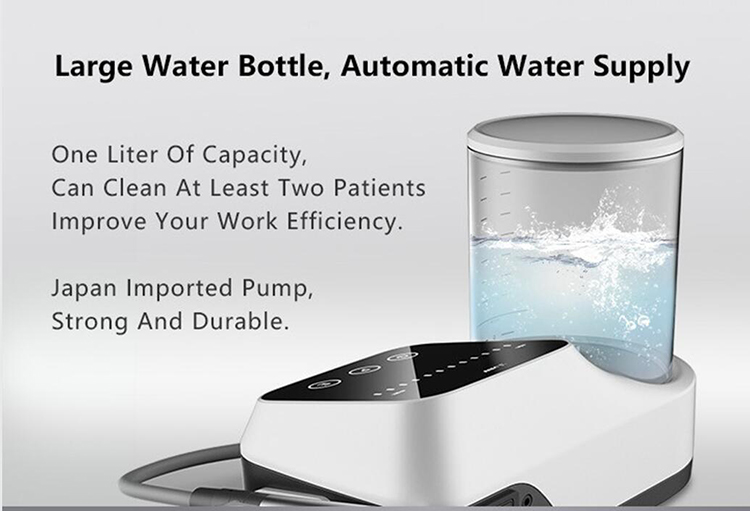

3.Two large refilable bottles,to satisfy using pure water or disinfectant
4.The hydraulic routing is made from antiseptic material. Disinfectant for the treatment, such as hydrogen peroxide, chlorhexidine, sodium hypochiorte can be filled into the automatic water supplysystem
5.Detachable handpiece can be 135℃and 0.22 MPa autoclave steriization
6.The design of electric valve, making water better controlled and operation more convenient.
7.The evolutional wireless foot pedal remotes the main unit, and the cord foot pedal can also be selected according to user's needs
8.Soft bright LED light improves the clinical efficiency.

Technical Specification:

Specification
Input	AC100~240V, 50/60Hz
Main Unit Input	DC30V, 1.3A
Water Input pressure	0.5MPa~0.6MPa
Vibration frequency of the tip	28kHz+3kHz
Ultrasonic output power	3W~20W
Output Half-excursion	≤2N
Foot Switch Batteries	1.5V×2
Receiving Sensitivity	-114Db
Main Unit Dimensions	310×370×170mm
Packing Size	470×400×235mm
Weight of main unit	1.50kg
Gross Weight	6kg
Quality guarantee	host – 3 years, handpiece – 1 year
Scaling Tip	G1*1, G2*1, G3*1 G4*1, G5*1, E1*1, IM1*1, P1*1, P2R*1, P2L*1, P3*1, P11*2, P12L*2, P12R*2, P12*2, P13R*1, P13L*1, P15*1

EMS PIEZON 150

US24 Ultrasonic Scaler

COMPACT AND EASY TO USE
The PIEZON® 150 is the first of its class when it comes to direct-waterline devices. It carries the standard PIEZON® module with an ultrasonic performance of 32,000 linear oscillations per second, providing an efficient calculus removal and maximum precision. It has a compact design, taking up very little space in the office, with an intuitive power-control interface.

FEATURES:

Effortless one-finger power-control
Lightweight and non-encombrant
Precise linear oscillation for predictable clinical outcomes and patient comfort
Gentle Perio power range
Water supply via fixed water connection
Ergonomic handpiece with pen-style grip

Support/ PIEZON® 150 The PIEZON® 150 removes calculus and offers all other ultrasonic PIEZON® applications. Multifunction pedal. Swiss Made
